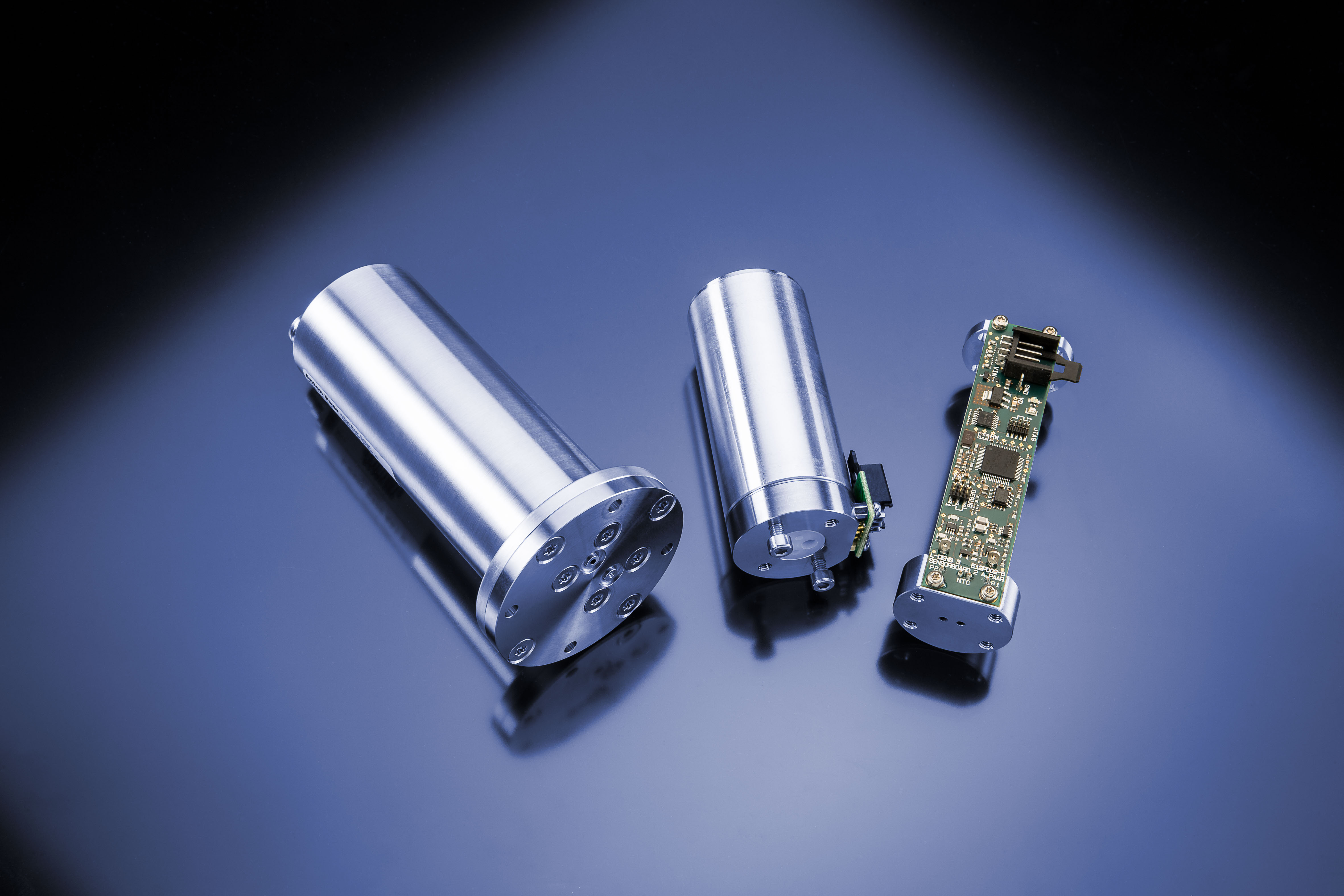

Small space requirements enable the installation in every system

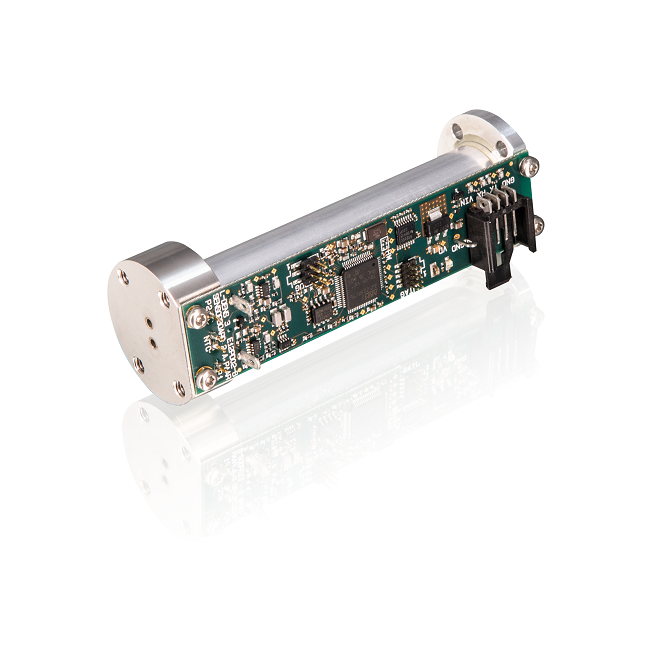

L-Dens 2300 sensors are very small. The sensor and the process board form a compact unit. Thus, they can be easily integrated into different systems.

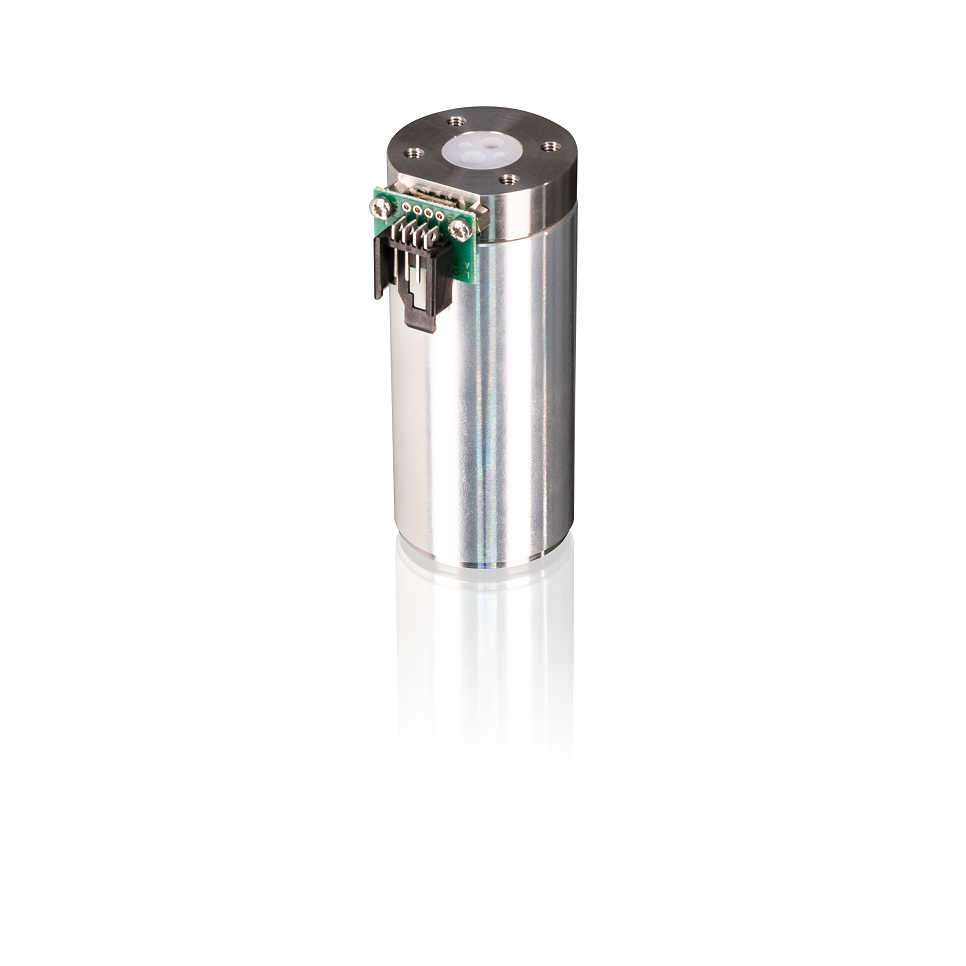

• Space requirements start at only 34 mm x 37 mm x 88 mm for L-Dens 2300 with wetted parts made of stainless steel
• Space requirements for L-Dens 2300 with wetted parts made of glass: 34 mm x 34 mm x 99 mm

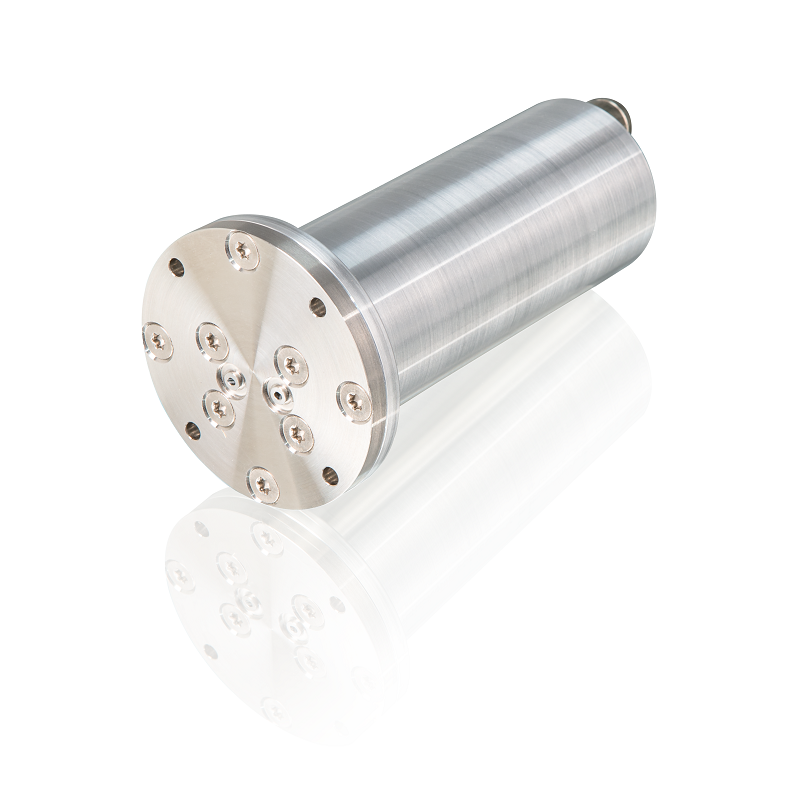

• Space requirements for L-Dens 2300 with stainless steel housing: Flange diameter 64 mm x 64mm x 134 mm.
• Due to the small sensor size, systems can be designed to be more flexible, which supports you when fulfilling customer space requirements

Suitable accuracy even at low flow rates

The 3 mm U-tube which measures the density using the oscillating U-tube principle provides precise measuring values even at low flow rates, which is beneficial for the integration into third-party products such as soldering machines, engine test benches, and inkjet printers.

• Flow rate ≤80 L/h
• Accuracy of 3 digits

A lean design concept keeps your investment costs low

The simple design, which is reduced to the most important components, keeps the investment costs low.

• Concentration formula included
• Interface RS-232

The right materials for the wetted parts

The available wetted parts made of stainless steel or glass are prepared to withstand non-corrosive and aggressive process liquids. Choose the material according to your production media.

Wetted parts are made of:

• Stainless steel for standard applications: fuel measurements at motor testing stations or determining the concentration of oils in solvents
• Glass to withstand aggressive process liquids for chemical applications such as determining the concentration of detergents or sulfuric acid

Reduction of future capital expenditure

L-Dens 2300 sensors are designed without moving parts. Once installed within a system, L-Dens 2300 does not require any maintenance or consumables. This keeps your current and future investment costs low.
