Complete solution – no additional options required to start

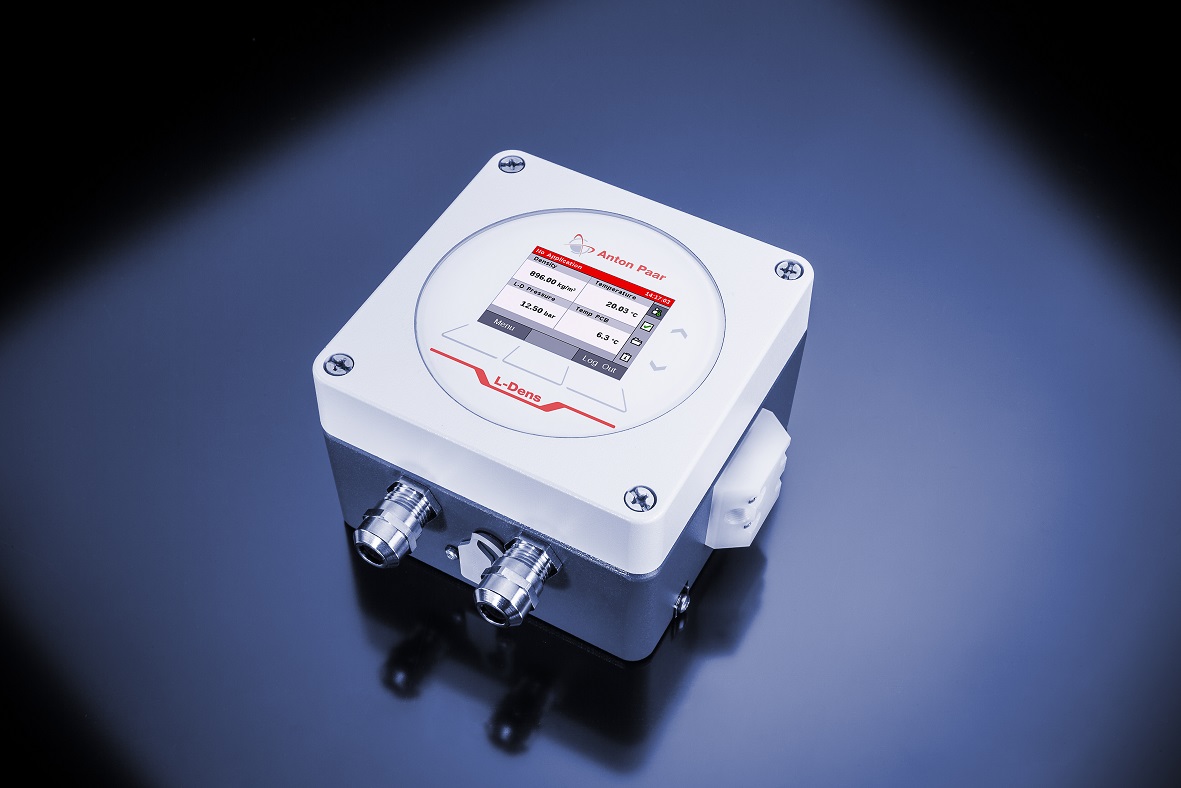

L-Dens 3300 consists of an integrated controller, a high-quality display with user interface and capacitive keys, and a wide range of implemented application programs which makes it versatile for many applications such as in the petroleum, chemical, and beverage industries, and at public research institutes. You benefit from a simple process installment continuously monitor your products.

Integrated controller:

• Display with capacitive keys
• Implemented application programs

Density measurement with economic efficiency

The sensors are available at a reasonable price and provide an affordable way of continuously monitoring the density and concentration of process liquids at a 3-digit accuracy. It is designed as a stand-alone sensor; therefore, there are no additional expenses for integration. The sensor is best suited for, e.g., lab reactors, pilot- or production plants.

• Affordable way of continuous density measurement
• 3-digit accuracy
• Temperature-compensated density, °Brix, °Plato, %alcohol
• API index or other concentration values
• Stand-alone instrument
• No expenses for integration

Low flow rates for accurate measurement

The 3 mm U-tube which measures the density using the oscillating U-tube principle provides precise measuring values at flow rates below 80 L/h.

• 3 mm U-tube
• Flow rate ≤80 L/h

The right materials for the wetted parts to avoid contaminations and minimize wear and tear

The available wetted parts made of stainless steel or glass are prepared for the use in, e.g., the petroleum, chemical, and beverage industry to withstand corrosion on the sensing element. You benefit from accurate and drift-free measurements even in difficult media.

Wetted parts made of:

• Stainless steel
• Glass

No service required

L-Dens 3300 sensors do not require any service activities. They are designed without moving parts, are maintenance-free, and do not require any consumables.
